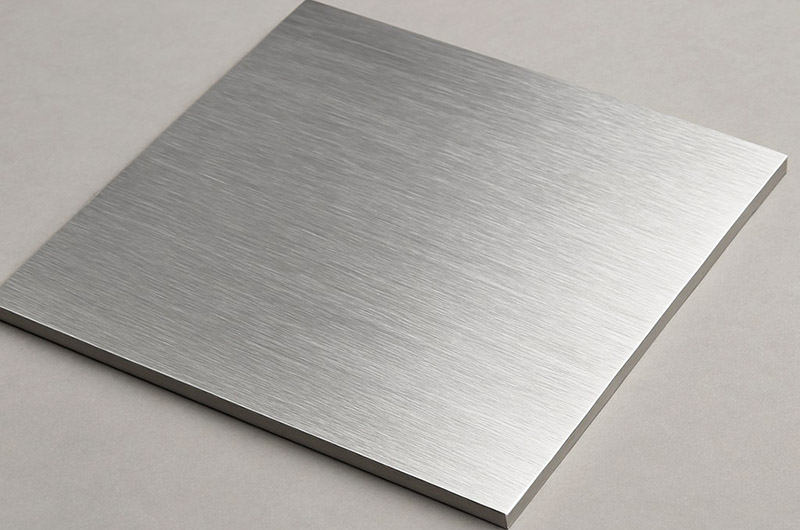

1100 h14 aluminum sheet
1100 H14 aluminum sheet is the product form of 1100 aluminum alloy in the H14 temper. It is processed through strain hardening and is typically used in applications that require a balance of strength and machinability.
1100-H14 aluminum is a commercially pure aluminum alloy with an aluminum content of at least 99%. "H14" indicates that the material has undergone strain hardening treatment, with strength between annealed (O) and fully hardened (H18) tempers.
- 1100: Represents commercially pure aluminum with an aluminum content of ≥99.0%. It belongs to the 1xxx series of non-heat-treatable alloys, known for its high purity characteristics.
- H14: Indicates the material has been strain-hardened to a half-hard temper through cold working, without subsequent annealing. It offers moderate strength and balanced ductility.
1100 H14 aluminum sheet is a commercially pure aluminum alloy, known for its excellent formability, corrosion resistance, and versatility.
1100 H14 aluminum sheet alloy composition
1100 aluminum alloy is primarily composed of pure aluminum (with an aluminum content not lower than 99%), and contains trace amounts of copper, iron, magnesium, manganese, silicon, and other elements. Due to its high purity, 1100 aluminum has excellent corrosion resistance and good electrical conductivity.
| Weight% | Al | Cu | Si + Fe | Mn | Zn | Others |
| 1100 | Rem | 0.05 - 0.020 | 0.95 max | 0.05 max | 0.10 max | 0.05 (each) 0.15 (total) |
What does H14 mean in aluminum?
Hardness condition (H14): 1100 aluminum alloy reaches the H14 temper after partial strain hardening treatment. H14 indicates that the aluminum alloy has undergone moderate cold working (approximately 50% elongation), which increases its strength, but it has not reached the full hard condition (H18). Therefore, its strength is higher than the annealed (O) state, while still maintaining a certain level of ductility and machinability.
1100 H14 aluminum sheet properties
- Strength: The strength of 1100-H14 aluminum is moderate, typically falling between the annealed (O) and full hard (H18) states. Its yield strength is about 130 MPa, and its tensile strength is approximately 200 MPa, making it suitable for applications requiring moderate strength.
- Corrosion resistance: Due to the high purity of 1100 aluminum alloy, it has excellent corrosion resistance, especially in corrosive environments such as moisture, chemicals, and marine climates.
- Machinability: Although the strength of 1100-H14 aluminum alloy is relatively high, it still retains good machinability. This makes it suitable for further processing through conventional methods such as cutting, bending, and forming.
- Weldability: Due to its low alloy content, 1100 aluminum alloy has good weldability, making it commonly used in welding and joining applications.
- Surface treatment: The surface of 1100-H14 aluminum alloy can be treated through anodizing, painting, or spraying to enhance its appearance, corrosion resistance, or other functional properties.
1100 h14 aluminum sheet Specifications
| Dimension Name | Specification |
| Alloy | 1100 |
| Temper | H14 |
| Material | Aluminum |
| Standard | ASTM-B209 |
| Shape | Sheet/Plate |
| Select length and width below or Custom Cut | |
| 12" X 12" | (1 X 1 ft.) |
| 12" X 24" | (1 X 2 ft.) |
| 12" X 36" | (1 X 3 ft.) |
| 12" X 48" | (1 X 4 ft.) |
| 24" X 24" | (2 X 2 ft.) |
| 24" X 36" | (2 X 3 ft.) |
| 24" X 48" | (2 X 4 ft.) |
| 36" X 36" | (3 X 3 ft.) |
| 36" X 48" | (3 X 4 ft.) |
| 48" X 48" | (4 X 4 ft.) |
| 48" X 144" | (4 X 12 ft.) |
1100 h14 Aluminum Sheet Standards and Specifications
- ASTM B209: The primary standard for sheet products.
- AMS-QQ-A-250/1, EN 485-2: Additional certifications for industrial applications.
1100 h14 Aluminum Sheet Characteristics
- Corrosion Resistance: Exceptional resistance to corrosion, suitable for humid and chemical environments.
- Formability: Excellent formability, allowing bending, spinning, drawing, stamping, and roll forming.
- Electrical and Thermal Conductivity: High electrical and thermal conductivity, ideal for applications requiring efficient thermal and electrical transfer.
- Weldability: Good weldability, compatible with various welding techniques.
Haomei 1100 H14 Aluminum Available Forms and Sizes
| Item | Description |
| Thickness Range | 0.008 inches to 0.249 inches (customizable for special applications, up to 10 mm thickness) |
| Common Sizes | 12 inches × 12 inches |
| 48 inches × 96 inches | |
| 48 inches × 144 inches | |
| Available Forms | Sheet |
| Coil | |
| Custom Cut Panels | |
| Surface Treatment Options | Anodized |
| Coated | |
| Brushed | |
| Colored (Gold, Black, Blue, etc.) |
1100 h14 aluminum Mechanical Properties
| Property | Value |
| Density g/cm^3 | 3 |
| Yield Tensile Strength KSI | 17 |
| Ultimate Tensile Strength KSI | 16 - 21 |
| Brinell Hardness 500 kg load | 32 |
| Electrical Conductivity % IACS | 59 |
| Elongation % in 2 in. | 1 - 10 |
| Shear Strength KSI | 11 |
| Machinability % | 30 |
| Melting Point °F | 1190 - 1215 |
1100 h14 Aluminum Sheet Physical Properties
- Density: Approximately 2.71 g/cm³, highlighting its lightweight characteristics
- Thermal Conductivity: Excellent, suitable for heat dissipation applications
- Electrical Conductivity: High, close to pure aluminum level
- Corrosion Resistance: Outstanding, especially in humid or chemical environments

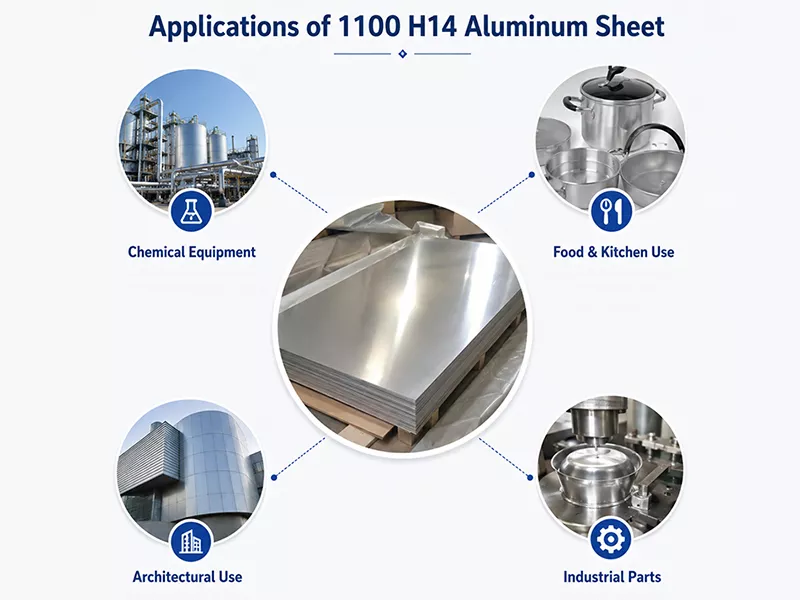

1100 H14 aluminum sheet applications
1100-H14 aluminum alloy sheet is mainly used in fields that require higher strength but also need good machinability and corrosion resistance.
- Industrial manufacturing: In industrial components that require a balance of strength and machinability, 1100-H14 aluminum sheet is commonly used in equipment enclosures, containers, chemical equipment parts, and more.
- Construction industry: Due to its corrosion resistance, 1100-H14 aluminum sheet is suitable for building exterior decorations, roofing materials, window frames, and more.
- Food and chemical containers: Due to its excellent corrosion resistance, 1100-H14 aluminum alloy is often used to manufacture food storage containers, chemical tanks, and more.
- Transportation industry: Used for manufacturing structural components of light transportation vehicles, such as car bodies, enclosures, decorative parts, and more.
- Electronic product enclosures: In electronic product enclosures, 1100-H14 aluminum alloy is widely used for manufacturing enclosures for devices such as mobile phones, computers, home appliances, and more, due to its good machinability and strength.
| Application Field | Specific Applications | Related Properties |
| Architecture and Decoration | Waterproof panels; curtain walls; interior ceilings; decorative moldings; anodized/coated decorative panels | High surface finish; good formability; adaptable to surface treatments |
| Heat Exchange and Dissipation | Heat exchangers (industrial equipment); heat sinks for electronic devices; lighting reflectors; radiators | Excellent thermal conductivity; corrosion resistance |
| Food Processing and Packaging | Food processing equipment; food-grade containers (cookware, packaging); aluminum foil; lightweight containers | High purity (hygienic safety); corrosion resistance; non-reactive material |
| Electrical Engineering | Conductive components (wires, connectors); formable electrical parts (housings, brackets) | Good electrical conductivity; excellent formability |
| Light Industry Manufacturing | Low-load structural parts (brackets, supports); reflective components like lighting reflectors | Lightweight; easy to process; high surface reflectivity |
1100 H14 aluminum sheet processing methods
- Cutting: Can be processed using traditional mechanical cutting methods, such as shearing, sawing, etc.
- Bending: Can be processed using conventional bending techniques.
- Forming: Can be processed through stretching, extrusion, and other forming processes.
- Welding: Due to its good weldability, 1100-H14 aluminum alloy sheet can be joined using conventional welding techniques.
1100 H14 aluminum sheet advantages
- Excellent corrosion resistance: Especially suitable for applications exposed to corrosive environments for extended periods, such as chemicals, marine, and outdoor environments.
- Good machinability: Can be processed through various machining methods (such as cutting, stamping, bending, etc.), suitable for manufacturing complex shapes.
- Moderate strength: Provides higher strength compared to pure aluminum annealed state (O), suitable for applications requiring a certain level of strength.
- Cost-effectiveness: As a pure aluminum alloy, the production cost of 1100 aluminum alloy is relatively low, offering good cost-performance ratio.
1100 H14 aluminum sheet limitations
Lower strength: Although stronger than the annealed (O) state, the strength of 1100-H14 aluminum alloy is still lower compared to other high-strength aluminum alloys (such as 2024, 7075, etc.). Therefore, it is not suitable for applications that involve extremely high stress.
1100-H14 aluminum alloy sheet is a well-balanced material with high corrosion resistance and good machinability, suitable for applications that require moderate strength and good machinability. Its strength is moderate, making it suitable for industries such as industrial, construction, and transportation, but it is not suitable for structural components that bear excessive loads.
Comparison of 1100 H14 Aluminum Sheet with Other Aluminum Alloys
1100 H14 vs. H24
- 1100 H14 is strain-hardened through cold working, offering slightly higher strength but lower ductility.
- 1100 H24 is partially annealed after cold working, resulting in slightly lower strength but better formability.
| Temper | Processing Method & Performance Characteristics | Applicable Scenarios |
| 1100 H14 | Hardened directly by cold working without annealing. Offers higher mechanical strength than the annealed condition but lower ductility, not suitable for complex forming. | Suitable for applications requiring moderate strength without complex forming, such as structural parts, nameplates, general casings, etc. |
| 1100 H24 | Partially annealed after cold working. Has slightly lower mechanical strength than H14, but significantly improved formability, reduced residual stress, and better adaptability for processing. | More suitable for bending, stamping, and forming processes, such as lamp reflectors, decorative panels, kitchen utensils, and other products requiring excellent formability. |
Comparison of 1100 with 1050/1060 Alloys
1100 offers excellent formability, while 1050/1060 provide superior electrical conductivity.
| Alloy Grade | Performance Characteristics | Typical Applications |
| 1100 Aluminum Alloy | Aluminum content ≥99.0%, contains trace impurities. Exhibits excellent formability, suitable for deep drawing and complex surface processing; easier to control deformation during forming. | Architectural decoration, lamp housings, nameplates, cookware, reflectors, and other applications requiring good ductility and formability. |
| 1050 Aluminum Alloy | Aluminum content ≥99.5%, excellent electrical conductivity, good formability but slightly lower than 1100, relatively low mechanical strength. | Conductive bus bars, cable sheaths, electrical wires, chemical equipment, electronic components, and other products requiring high conductivity or corrosion resistance. |
| 1060 Aluminum Alloy | Aluminum content ≥99.6%, slightly better conductivity than 1050, good plasticity and corrosion resistance, average formability, cost-effective. | Power engineering, bus bars, flexible connections, cable cladding materials, aluminum foil, capacitor casings, and other electrical applications requiring high conductivity. |
What is the Difference Between 1100-H14 and H18 Aluminum?
The main differences between 1100-H14 and 1100-H18 aluminum grades lie in their mechanical properties, processing methods, and resulting performance.
- 1100-H14 aluminum strikes a good balance between strength and formability, making it suitable for applications that require moderate strength and ease of processing.
- 1100-H18 offers higher strength and hardness but has reduced ductility and formability. The choice between the two depends on the specific requirements of the application, including the need for strength versus ease of processing.
| Characteristics | 1100-H14 Aluminum | 1100-H18 Aluminum |
| Temper | Strain-hardened temper. Partially hardened through cold working, but not fully hardened. | Fully hardened temper. Undergoes higher levels of strain hardening. |
| Hardness | Medium hardness, between fully annealed (O condition) and fully hardened (H18). | Higher hardness, stronger, but with reduced formability. |
| Strength | Moderate tensile strength, suitable for applications requiring good formability and moderate strength. | High tensile strength, better suited for applications requiring higher strength. |
| Ductility | Good ductility, easy to form and process. | Lower ductility, increased hardness reduces flexibility and makes it more prone to cracking. |
| Formability | Excellent formability, suitable for bending, stamping, and deep drawing processes. | Reduced formability, processing is more challenging. |
| Common Applications | Automotive interiors, building panels, kitchenware, and consumer products where a balance of strength and ease of processing is needed. | Structural components, heavy-duty applications, and other situations requiring higher strength. |
Processing Characteristics of 1100 H14 Aluminum Sheet
- Formability: Can be processed by cold rolling, stamping, bending, etc., but attention should be paid to work hardening tendencies.
- Weldability: Good, compatible with conventional welding methods
- Surface Treatment: Anodizing improves corrosion resistance and aesthetics
It should be noted that although 1100-H14 aluminum has excellent formability and corrosion resistance, its strength is relatively low compared to other aluminum alloys. Therefore, it is best suited for applications where formability and corrosion resistance are prioritized over high strength.

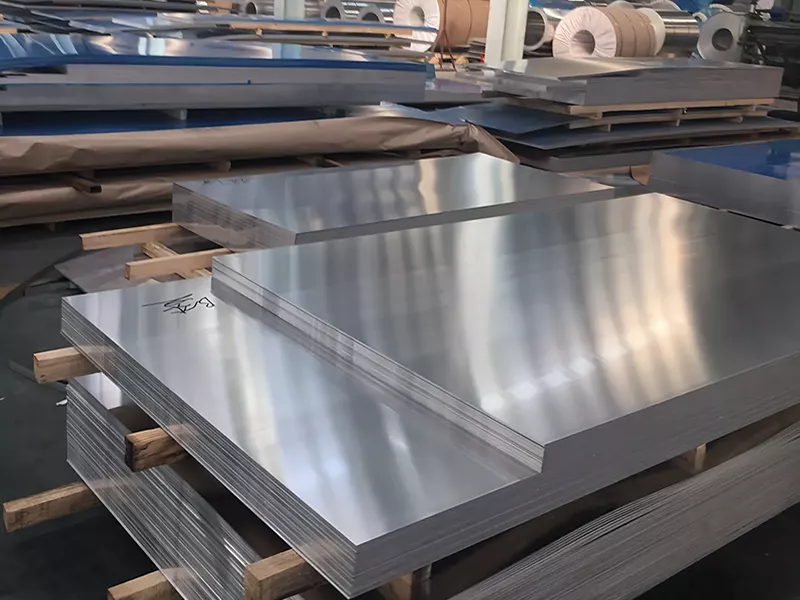

Haomei 1100 h14 Aluminum Sheet stock sizes
| Description | Temper | Thickness(In) | Width(In) | Length(In) |
| 0.02" 1100-H14 Aluminum Sheet 2 × 24 | H14 | 0.02" | 2" | 24" |
| 0.032" 1100-H14 Aluminum Sheet 2 × 24 | H14 | 0.032" | 2" | 24" |
| 0.04" 1100-H14 Aluminum Sheet 2 × 24 | H14 | 0.04" | 2" | 24" |
| 0.032" 1100-H14 Aluminum Sheet 4 × 24 | H14 | 0.032" | 4" | 24" |
| 0.04" 1100-H14 Aluminum Sheet 4 × 24 | H14 | 0.04" | 4" | 24" |
| 0.05" 1100-H14 Aluminum Sheet 4 × 24 | H14 | 0.05" | 4" | 24" |
| 0.04" 1100-H14 Aluminum Sheet 6 × 6 | H14 | 0.04" | 6" | 6" |
| 0.05" 1100-H14 Aluminum Sheet 6 × 6 | H14 | 0.05" | 6" | 6" |
| 0.063" 1100-H14 Aluminum Sheet 6 × 6 | H14 | 0.063" | 6" | 6" |
| 0.05" 1100-H14 Aluminum Sheet 6 × 12 | H14 | 0.05" | 6" | 12" |
| 0.063" 1100-H14 Aluminum Sheet 6 × 12 | H14 | 0.063" | 6" | 12" |
| 0.08" 1100-H14 Aluminum Sheet 6 × 12 | H14 | 0.08" | 6" | 12" |
| 0.063" 1100-H14 Aluminum Sheet 6 × 24 | H14 | 0.063" | 6" | 24" |
| 0.08" 1100-H14 Aluminum Sheet 6 × 24 | H14 | 0.08" | 6" | 24" |
| 0.09" 1100-H14 Aluminum Sheet 6 × 24 | H14 | 0.09" | 6" | 24" |
| 0.08" 1100-H14 Aluminum Sheet 12 × 12 | H14 | 0.08" | 12" | 12" |
| 0.09" 1100-H14 Aluminum Sheet 12 × 12 | H14 | 0.09" | 12" | 12" |
| 0.125" 1100-H14 Aluminum Sheet 12 × 12 | H14 | 0.125" | 12" | 12" |
| 0.09" 1100-H14 Aluminum Sheet 12 × 24 | H14 | 0.09" | 12" | 24" |
| 0.125" 1100-H14 Aluminum Sheet 12 × 24 | H14 | 0.125" | 12" | 24" |
| 0.02" 1100-H14 Aluminum Sheet 24 × 24 | H14 | 0.02" | 24" | 24" |
| 0.125" 1100-H14 Aluminum Sheet 24 × 24 | H14 | 0.125" | 24" | 24" |
| 0.02" 1100-H14 Aluminum Sheet 24 × 48 | H14 | 0.02" | 24" | 48" |
| 0.032" 1100-H14 Aluminum Sheet 24 × 48 | H14 | 0.032" | 24" | 48" |
