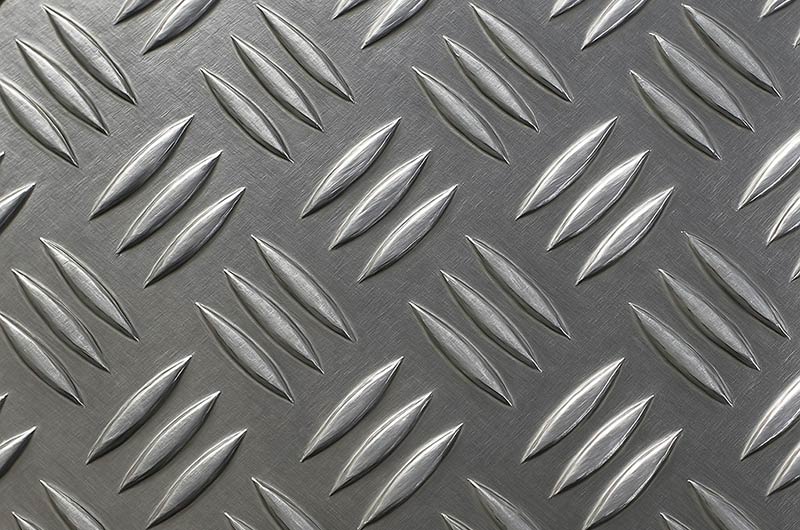

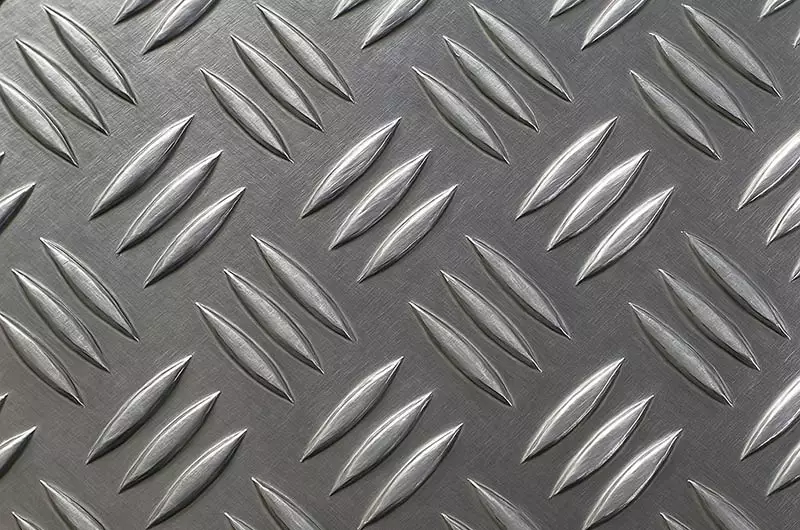

Aluminum Tread Plate 3003

3003 Aluminum tread plate, commonly known as "diamond plate" or "floor plate".

3003 Aluminum Tread Plate is lightweight, with a highly polished surface texture, and the raised diamond pattern provides excellent anti-slip performance.

This tread plate is made of 3003 aluminum alloy, which is a widely used alloy, and holds an important position among all aluminum alloys. It is essentially pure aluminum with the addition of manganese, which increases its strength by about 20% compared to the 1100 alloy. This alloy has excellent corrosion resistance and good workability, making it suitable for deep drawing, spinning, welding, and brazing operations.

As a versatile aluminum material, 3003 Aluminum Tread Plate performs well in a variety of applications. Common uses include truck bodies, support structures, walkways, trench covers, and more.

Features of 3003 Aluminum Tread Plate

1. Weaker than 6001 Aluminum Tread Plate
2. Non-heat treatable
3. Formability/Workability: Excellent
4. Weldability: Excellent
5. Machinability: Good
6. Corrosion resistance: Good

3003 Aluminum Tread Plate Available Sizes

0.063" (1/16) thick Aluminum Diamond Brite Plate 3003 H22

Width: 24.00" Length: 48.00" Surface Finish: Bright Finish Pattern: Diamond
0.063" (1/16) thick Aluminum Tread Brite Sheet Plate 3003 H22

Width: 24.00" Length: 48.00" Surface Finish: Bright Finish Pattern: 5 Bar
0.063" (1/16) thick Aluminum Diamond Plate 3003 H22

Width: 24.00" Length: 48.00" Surface Finish: Highly Polished Pattern: Diamond
0.063" (1/16) thick 3003 H22 Aluminum Tread Plate

Width: 24.00" Length: 48.00" Surface Finish: Highly Polished Pattern: 5 Bar
0.063" (1/16) thick Aluminum Diamond Brite Plate 3003 H22

Width: 48.00" Length: 120.00" Surface Finish: Bright Finish Pattern: Diamond
0.063" (1/16) thick Aluminum Tread Brite Sheet Plate 3003 H22

Width: 48.00" Length: 120.00" Surface Finish: Bright Finish Pattern: 5 Bar
0.063" (1/16) thick Aluminum Diamond Plate 3003 H22

Width: 48.00" Length: 120.00" Surface Finish: Highly Polished Pattern: Diamond
0.063" (1/16) thick 3003 H22 Aluminum Tread Plate

Width: 48.00" Length: 120.00" Surface Finish: Highly Polished Pattern: 5 Bar
0.063" (1/16) thick Aluminum Diamond Brite Plate 3003 H22

Width: 48.00" Length: 96.00" Surface Finish: Bright Finish Pattern: Diamond
0.063" (1/16) thick Aluminum Tread Brite Sheet Plate 3003 H22

Width: 48.00" Length: 96.00" Surface Finish: Bright Finish Pattern: 5 Bar
0.063" (1/16) thick Aluminum Diamond Plate 3003 H22

Width: 48.00" Length: 96.00" Surface Finish: Highly Polished Pattern: Diamond
0.063" (1/16) thick 3003 H22 Aluminum Tread Plate

Width: 48.00" Length: 96.00" Surface Finish: Highly Polished Pattern: 5 Bar
0.1" thick Aluminum Diamond Brite Plate 3003 H22

Width: 48.00" Length: 120.00" Surface Finish: Bright Finish Pattern: Diamond
0.1" thick Aluminum Tread Brite Sheet Plate 3003 H22

Width: 48.00" Length: 120.00" Surface Finish: Bright Finish Pattern: 5 Bar
0.1" thick Aluminum Diamond Plate 3003 H22

Width: 48.00" Length: 120.00" Surface Finish: Highly Polished Pattern: Diamond
0.1" thick 3003 H22 Aluminum Tread Plate

Width: 48.00" Length: 120.00" Surface Finish: Highly Polished Pattern: 5 Bar
0.1" thick Aluminum Diamond Brite Plate 3003 H22

Width: 24.00" Length: 48.00" Surface Finish: Bright Finish Pattern: Diamond
0.1" thick Aluminum Tread Brite Sheet Plate 3003 H22

Width: 24.00" Length: 48.00" Surface Finish: Bright Finish Pattern: 5 Bar
0.1" thick Aluminum Diamond Plate 3003 H22

Width: 24.00" Length: 48.00" Surface Finish: Highly Polished Pattern: Diamond
0.1" thick 3003 H22 Aluminum Tread Plate

Width: 24.00" Length: 48.00" Surface Finish: Highly Polished Pattern: 5 Bar
0.1" thick Aluminum Diamond Brite Plate 3003 H22

Width: 48.00" Length: 96.00" Surface Finish: Bright Finish Pattern: Diamond
0.1" thick Aluminum Tread Brite Sheet Plate 3003 H22

Width: 48.00" Length: 96.00" Surface Finish: Bright Finish Pattern: 5 Bar
0.1" thick Aluminum Diamond Plate 3003 H22

Width: 48.00" Length: 96.00" Surface Finish: Highly Polished Pattern: Diamond
0.1" thick 3003 H22 Aluminum Tread Plate

Width: 48.00" Length: 96.00" Surface Finish: Highly Polished Pattern: 5 Bar
0.1" thick Aluminum Diamond Brite Plate 3003 H22

Width: 60.00" Length: 120.00" Surface Finish: Bright Finish Pattern: Diamond
0.1" thick Aluminum Tread Brite Sheet Plate 3003 H22

Width: 60.00" Length: 120.00" Surface Finish: Bright Finish Pattern: 5 Bar
0.1" thick Aluminum Diamond Plate 3003 H22

Width: 60.00" Length: 120.00" Surface Finish: Highly Polished Pattern: Diamond
0.1" thick 3003 H22 Aluminum Tread Plate

Width: 60.00" Length: 120.00" Surface Finish: Highly Polished Pattern: 5 Bar
0.1" thick Aluminum Diamond Brite Plate 3003 H22

Width: 12.00" Length: 24.00" Surface Finish: Bright Finish Pattern: Diamond
0.1" thick Aluminum Tread Brite Sheet Plate 3003 H22

Width: 12.00" Length: 24.00" Surface Finish: Bright Finish Pattern: 5 Bar
0.1" thick Aluminum Diamond Plate 3003 H22

Width: 12.00" Length: 24.00" Surface Finish: Highly Polished Pattern: Diamond
0.1" thick 3003 H22 Aluminum Tread Plate

Width: 12.00" Length: 24.00" Surface Finish: Highly Polished Pattern: 5 Bar
0.125" (1/8) thick Aluminum Diamond Brite Plate 3003 H22

Width: 48.00" Length: 120.00" Surface Finish: Bright Finish Pattern: Diamond
0.125" (1/8) thick Aluminum Tread Brite Sheet Plate 3003 H22

Width: 48.00" Length: 120.00" Surface Finish: Bright Finish Pattern: 5 Bar
0.125" (1/8) thick Aluminum Diamond Plate 3003 H22

Width: 48.00" Length: 120.00" Surface Finish: Highly Polished Pattern: Diamond
0.125" (1/8) thick 3003 H22 Aluminum Tread Plate

Width: 48.00" Length: 120.00" Surface Finish: Highly Polished Pattern: 5 Bar
0.125" (1/8) thick Aluminum Diamond Brite Plate 3003 H22

Width: 24.00" Length: 48.00" Surface Finish: Bright Finish Pattern: Diamond
0.125" (1/8) thick Aluminum Tread Brite Sheet Plate 3003 H22

Width: 24.00" Length: 48.00" Surface Finish: Bright Finish Pattern: 5 Bar
0.125" (1/8) thick Aluminum Diamond Plate 3003 H22

Width: 24.00" Length: 48.00" Surface Finish: Highly Polished Pattern: Diamond
0.125" (1/8) thick 3003 H22 Aluminum Tread Plate

Width: 24.00" Length: 48.00" Surface Finish: Highly Polished Pattern: 5 Bar
0.125" (1/8) thick Aluminum Diamond Brite Plate 3003 H22

Width: 48.00" Length: 96.00" Surface Finish: Bright Finish Pattern: Diamond
0.125" (1/8) thick Aluminum Tread Brite Sheet Plate 3003 H22

Width: 48.00" Length: 96.00" Surface Finish: Bright Finish Pattern: 5 Bar
0.125" (1/8) thick Aluminum Diamond Plate 3003 H22

Width: 48.00" Length: 96.00" Surface Finish: Highly Polished Pattern: Diamond
0.125" (1/8) thick 3003 H22 Aluminum Tread Plate

Width: 48.00" Length: 96.00" Surface Finish: Highly Polished Pattern: 5 Bar
0.125" (1/8) thick Aluminum Diamond Brite Plate 3003 H22

Width: 60.00" Length: 120.00" Surface Finish: Bright Finish Pattern: Diamond
0.125" (1/8) thick Aluminum Tread Brite Sheet Plate 3003 H22

Width: 60.00" Length: 120.00" Surface Finish: Bright Finish Pattern: 5 Bar
0.125" (1/8) thick Aluminum Diamond Plate 3003 H22

Width: 60.00" Length: 120.00" Surface Finish: Highly Polished Pattern: Diamond
0.125" (1/8) thick 3003 H22 Aluminum Tread Plate

Width: 60.00" Length: 120.00" Surface Finish: Highly Polished Pattern: 5 Bar
0.188" (3/16) thick Aluminum Diamond Brite Plate 3003 H22

Width: 48.00" Length: 120.00" Surface Finish: Bright Finish Pattern: Diamond
0.188" (3/16) thick Aluminum Tread Brite Sheet Plate 3003 H22

Width: 48.00" Length: 120.00" Surface Finish: Bright Finish Pattern: 5 Bar
0.188" (3/16) thick Aluminum Diamond Plate 3003 H22

Width: 48.00" Length: 120.00" Surface Finish: Highly Polished Pattern: Diamond
0.188" (3/16) thick 3003 H22 Aluminum Tread Plate

Width: 48.00" Length: 120.00" Surface Finish: Highly Polished Pattern: 5 Bar
0.188" (3/16) thick Aluminum Diamond Brite Plate 3003 H22

Width: 24.00" Length: 48.00" Surface Finish: Bright Finish Pattern: Diamond
0.188" (3/16) thick Aluminum Tread Brite Sheet Plate 3003 H22

Width: 24.00" Length: 48.00" Surface Finish: Bright Finish Pattern: 5 Bar
0.188" (3/16) thick Aluminum Diamond Plate 3003 H22

Width: 24.00" Length: 48.00" Surface Finish: Highly Polished Pattern: Diamond
0.188" (3/16) thick 3003 H22 Aluminum Tread Plate

Width: 24.00" Length: 48.00" Surface Finish: Highly Polished Pattern: 5 Bar
0.188" (3/16) thick Aluminum Diamond Brite Plate 3003 H22

Width: 48.00" Length: 96.00" Surface Finish: Bright Finish Pattern: Diamond
0.188" (3/16) thick Aluminum Tread Brite Sheet Plate 3003 H22

Width: 48.00" Length: 96.00" Surface Finish: Bright Finish Pattern: 5 Bar
0.188" (3/16) thick Aluminum Diamond Plate 3003 H22

Width: 48.00" Length: 96.00" Surface Finish: Highly Polished Pattern: Diamond
0.188" (3/16) thick 3003 H22 Aluminum Tread Plate

Width: 48.00" Length: 96.00" Surface Finish: Highly Polished Pattern: 5 Bar
0.188" (3/16) thick Aluminum Diamond Brite Plate 3003 H22

Width: 60.00" Length: 120.00" Surface Finish: Bright Finish Pattern: Diamond
0.188" (3/16) thick Aluminum Tread Brite Sheet Plate 3003 H22

Width: 60.00" Length: 120.00" Surface Finish: Bright Finish Pattern: 5 Bar
0.188" (3/16) thick Aluminum Diamond Plate 3003 H22

Width: 60.00" Length: 120.00" Surface Finish: Highly Polished Pattern: Diamond
0.188" (3/16) thick 3003 H22 Aluminum Tread Plate

Width: 60.00" Length: 120.00" Surface Finish: Highly Polished Pattern: 5 Bar
0.25" (1/4) thick Aluminum Diamond Brite Plate 3003 H22

Width: 48.00" Length: 120.00" Surface Finish: Bright Finish Pattern: Diamond
0.25" (1/4) thick Aluminum Tread Brite Sheet Plate 3003 H22

Width: 48.00" Length: 120.00" Surface Finish: Bright Finish Pattern: 5 Bar
0.25" (1/4) thick Aluminum Diamond Plate 3003 H22

Width: 48.00" Length: 120.00" Surface Finish: Highly Polished Pattern: Diamond
0.25" (1/4) thick 3003 H22 Aluminum Tread Plate

Width: 48.00" Length: 120.00" Surface Finish: Highly Polished Pattern: 5 Bar
0.25" (1/4) thick Aluminum Diamond Brite Plate 3003 H22

Width: 48.00" Length: 144.00" Surface Finish: Bright Finish Pattern: Diamond
0.25" (1/4) thick Aluminum Tread Brite Sheet Plate 3003 H22

Width: 48.00" Length: 144.00" Surface Finish: Bright Finish Pattern: 5 Bar
0.25" (1/4) thick Aluminum Diamond Plate 3003 H22

Width: 48.00" Length: 144.00" Surface Finish: Highly Polished Pattern: Diamond
0.25" (1/4) thick 3003 H22 Aluminum Tread Plate

Width: 48.00" Length: 144.00" Surface Finish: Highly Polished Pattern: 5 Bar
0.25" (1/4) thick Aluminum Diamond Brite Plate 3003 H22

Width: 24.00" Length: 48.00" Surface Finish: Bright Finish Pattern: Diamond
0.25" (1/4) thick Aluminum Tread Brite Sheet Plate 3003 H22

Width: 24.00" Length: 48.00" Surface Finish: Bright Finish Pattern: 5 Bar
0.25" (1/4) thick Aluminum Diamond Plate 3003 H22

Width: 24.00" Length: 48.00" Surface Finish: Highly Polished Pattern: Diamond
0.25" (1/4) thick 3003 H22 Aluminum Tread Plate

Width: 24.00" Length: 48.00" Surface Finish: Highly Polished Pattern: 5 Bar
0.25" (1/4) thick Aluminum Diamond Brite Plate 3003 H22

Width: 48.00" Length: 96.00" Surface Finish: Bright Finish Pattern: Diamond
0.25" (1/4) thick Aluminum Tread Brite Sheet Plate 3003 H22

Width: 48.00" Length: 96.00" Surface Finish: Bright Finish Pattern: 5 Bar
0.25" (1/4) thick Aluminum Diamond Plate 3003 H22

Width: 48.00" Length: 96.00" Surface Finish: Highly Polished Pattern: Diamond
0.25" (1/4) thick 3003 H22 Aluminum Tread Plate

Width: 48.00" Length: 96.00" Surface Finish: Highly Polished Pattern: 5 Bar
0.25" (1/4) thick Aluminum Diamond Brite Plate 3003 H22

Width: 60.00" Length: 120.00" Surface Finish: Bright Finish Pattern: Diamond
0.25" (1/4) thick Aluminum Tread Brite Sheet Plate 3003 H22

Width: 60.00" Length: 120.00" Surface Finish: Bright Finish Pattern: 5 Bar
0.25" (1/4) thick Aluminum Diamond Plate 3003 H22

Width: 60.00" Length: 120.00" Surface Finish: Highly Polished Pattern: Diamond
0.25" (1/4) thick 3003 H22 Aluminum Tread Plate

Width: 60.00" Length: 120.00" Surface Finish: Highly Polished Pattern: 5 Bar

Aluminum Tread Plate 3003 Chemical Composition

Element	Percentage
Al	98.7
Cu	0.05 - 0.2
Fe	0.7 max
Mn	1 - 1.5
Si	0.6 max
Zn	0.1 max

Aluminum Tread Plate 3003 Mechanical Information

Param	Imperial	Metric
Density	0.1 lb/in3	2.78 g/cc
Ultimate Tensile Strength	22, 000psi	152 MPa
Yield Tensile Strength	21, 000psi	145 MPa
Fatigue Strength	9, 000psi	62.1 MPa
Shear Strength	14, 000psi	96.5 MPa
Melting Point	1, 190 - 1, 210°F	643 - 654°C

Applications of 3003 Aluminum Tread Plate

3003 aluminum tread plate has a wide range of applications, primarily suited for situations requiring slip resistance and durability.

Ramps: Due to its lightweight nature and excellent anti-slip performance, 3003 aluminum tread plate is an ideal material for ramps. The raised diamond pattern provides extra traction, ensuring safety, especially when used on wet or inclined surfaces.
Wall Panels: In construction and industrial environments, 3003 aluminum tread plate can be used for wall panel decoration or protection. Its corrosion resistance makes it a reliable choice for protecting walls in harsh environments, while also adding an aesthetically pleasing textured effect to spaces.
Truck Bed Liners: 3003 aluminum tread plate is often used as interior liners for truck beds, enhancing the durability of the bed while improving slip resistance, ensuring cargo remains stable during transportation.
Elevator Floors: Elevator floors require a durable and easy-to-clean material, and 3003 aluminum tread plate is an ideal choice due to its strength and anti-slip characteristics. Its corrosion resistance ensures long-lasting performance in high-use and humid environments.

Haomei Other Alloy Aluminum Tread Plate

Aluminum Tread Plate 4017

Aluminum Tread Plate 4017 is slightly stronger than 3003, making it suitable for applications requiring higher strength, particularly in outdoor or construction environments.
Aluminum Tread Floor Plate 6061

6061 aluminum tread plate is widely used due to its lightweight characteristics. It features a matte mill finish with a raised diamond pattern on the surface, which not only enhances its appearance but also provides excellent anti-slip performance.
